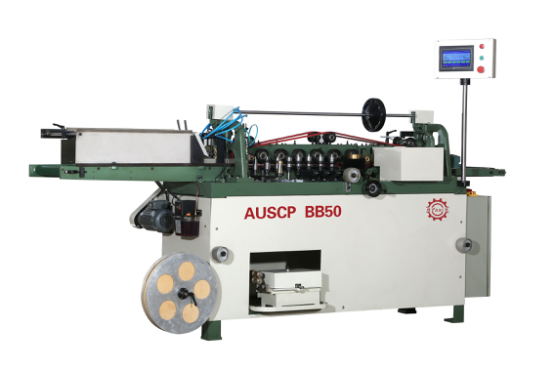

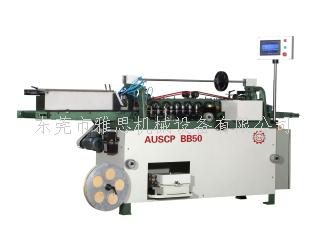

AUSCP BB50  包背机



AUSCP  BB50 Package back machine

产品组成：Product composition

AUSCP BB50用于笔记本、账册、方背和圆脊的包脊精装；由自动进本机构，上胶机构，包脊机构，分本机构，自动控制系统组成。

AUSCP BB50 is used for backing square or round spine for notebooks, account books etc. It consists of automatically feeding, gluing, backing, book-separating and computer-controlled system.

机组功能、特点：Unit functions, features

自主研发产品，性能稳定，生产效率高。

The machine is self-innovated, stable and efficient.

技术规格: Technical Date



最高机械速度Max cycle rate 12米/分钟12min/per min 总功率        Machine power 2.2kw

最大书本尺寸  Max book width 480×297 mm 电压要求Standard electricity 380V  220V  50Hz

最小书本尺寸  Min book width 150×90mm 空气消耗量（外部供应）Air consumption (external supply) 0.35 m3 /分钟0.35 m3 /min      8 bar

书本厚度Book thickness range 6--60  mm 整机总量Machine weight 1500 Kg

包背纸厚度Pack paper thickness 100--150  mm 机械外型尺寸（长 x 宽x 高）    measures 3000×1000×1280mm

L         H        SMax. size    297      480    60mmMin. size     90      150    4 mm AUSCP  BB50



设备安装平面图：Equipment installation plan
