SD70数控高速全自动粘丝带机 CNC High-speed Fully Automatic Ribbon Inserting Machine (new version)
上一个:KBUS B13高速胶订联动线 下一个:(无)
详情介绍

产品介绍 Product composition:

由书芯输送机构,同步带夹紧机构、分本送书机构、丝带输送机构、丝带尾部回折机构、丝带追剪机构、粘丝带机构、出书机构等组成。

The machine is composed of a book core delivery mechanism, a synchronous belt clamping mechanism, a split-book delivery mechanism, a ribbon delivery mechanism, a ribbon back-folding mechanism, a ribbon cutter mechanism, a ribbon sticking mechanism, an output mechanism, etc.

产品功能特点 Functions & features:

本机采用电脑自动控制,具有追剪裁切丝带功能;
The machine is controlled by a centre computer, which continuously unrolls the ribbon and then pastes it to book cores. The scissors with heating heads synchronize with the cutting ribbon, allowing for a fast and smooth cut. The cutting angle can be adjusted from vertical to diagonal.
本机具有丝带尾部回折、喷胶粘丝带功能;
The machine features ribbon back-folding, glue spray sticking, and automatic synchronous sticking functions.
各部位功能无需停顿即可完成分本送书、分页、输送丝带、回折丝带、裁切丝带、等各部位功能,运行速度快,效率高等优点;
This machine is designed to work smoothly. No manual intervention required in a complete production cycle including book delivery, page turning, ribbon delivery, back-folding, cutting, etc.
本机适用于精装书、笔记簿、账册等粘上丝带,便于翻看查阅;
The machine can be used to paste ribbons for hardcover books, notebooks, account books, etc
可与精装机联线生产,节省人工2-3人,提高生产效率;
Can be linked with hardcover book machines to save labor costs and increase production efficiency.
采用模块化紧凑设计,性能稳定,质量可靠;
The machine adopts a compact, modular design that is stable and reliable.
采用智能控制系统,速度自由设定,操作简单易学;
The intelligent control system allows speed settings to be programmed quickly and easily.

产品参数 Technical Data:


最高机械速度


Max. operating speed


70本/分钟


70 book blocks per minute


     总功率


Power consumption

4.5kw


书芯最大尺寸


Max. book block size


285x297mm

电压要求

Standard voltage

380V  220V  50Hz


书芯最小尺寸


Min. book block size


150x100mm

空气消耗量(外部供应)


Air consumption (external supply)

0.35 m3 /分钟
0.35 m3 /min      8 bar


书本最小厚度


Min. book thickness


8mm


整机重量



Gross weight

2500kg


书本最大厚度


Max. book thickness


60mm


机械外型尺寸(长 x 宽x 高)


Dimensions (length x width x height)



5800x 3200 x 1900mm


丝带宽度


The ribbon width


4-10mm








L         H          S


Max. size     297     285     60mm


Min. size      100     150     8mm


AUSCP  SD 70

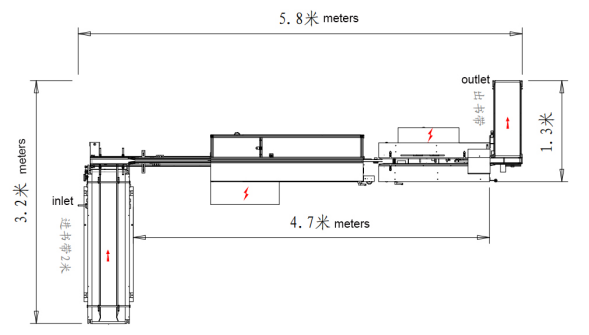

设备安装平面图 Equipment installation plan:

视频介绍 Introduction video
